UNIMAX WI-22 Marine Wind Speed Direction Indicator
Marine Wind Speed System displays wind speed and direction information at sea.It provides easy view with its 7 inch large color touch panel display. Unlike conventional displays, it provides a stylish appearance with its 7 inch large color touch panel. The brightness is adjusted with the day and night mode on the screen. If desired, the brightness can be adjusted according to demand. Optionally remote brightness adjustment is available.
Wind speed unit can be set as m/s, km/h, knots independently from the wind speed sensor. The Beaufort scale is calculated and displayed instantly. The device can be set to 3-level alarm threshold. Audible and visual alarm when the specified wind limit is exceeded. Each alarm can be active or passive independently of each other.
- Low Wind Alarm : It gives a warning when the actual wind speed drops below specified wind speed value.
- Preset Wind Alarm : It gives a warning when the actual wind speed exceeds the specified preset wind speed value.
- Full Wind Alarm: It gives a warning when the actual wind speed exceeds the specified upper wind speed value.

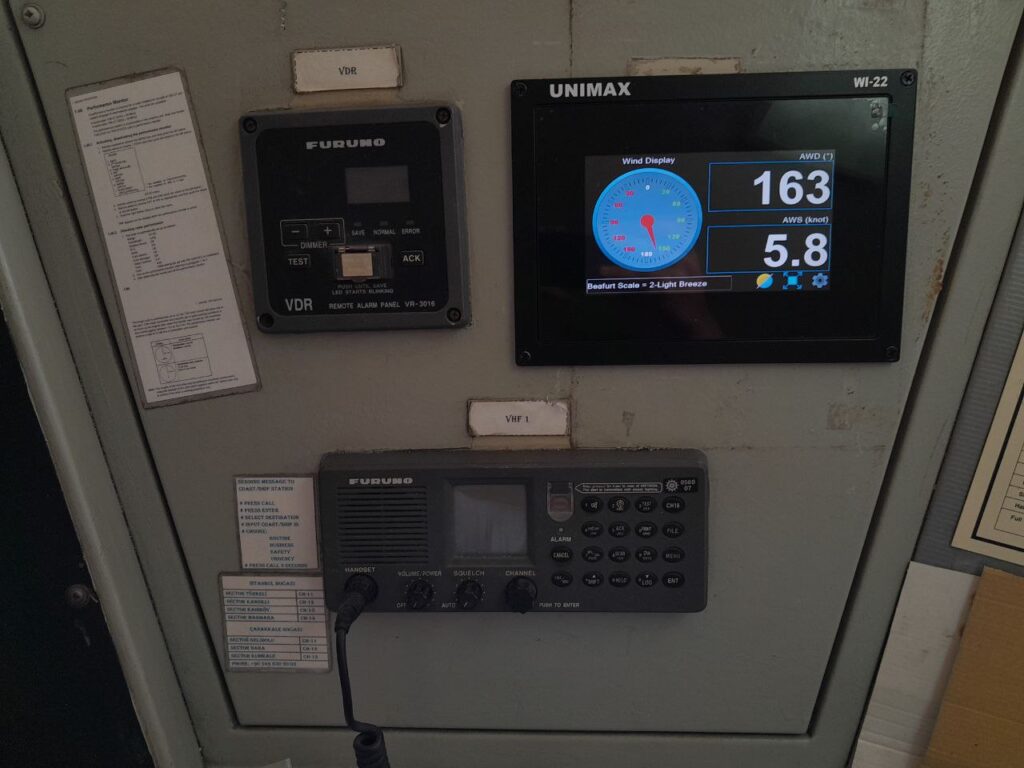

It is suitable for flush and desktop mounting with its robust casing.
| Technical Specifications | |
|---|---|
| Supply Voltage | 9-32VDC, 12 Watt |
| Wind Direction Range | 0-180 degrees (port & starboard) Full 360 degree display of apparent wind |
| Speed Unit | m/s, km/h, knots selectable |
| Beaufort Wind Scale Indicator | Automatic calculation |
| Input | 1 X Galvanic isolated NMEA Input 4800bps |
| Input data | Wind speed and direction NMEA data sentence MWV to any compatible NMEA device |
| Sensor | Ultrasonic, Mechanical |
| Display Type | Color LCD |
| Screen Size | 7″ |
| Brightness | 300nit – 0% to 100%, the interval of adjustment is 1% |
| Remote Brightness | Optional |
| Case-Dimensions | Metal – 250 x 180 x 55 mm |
